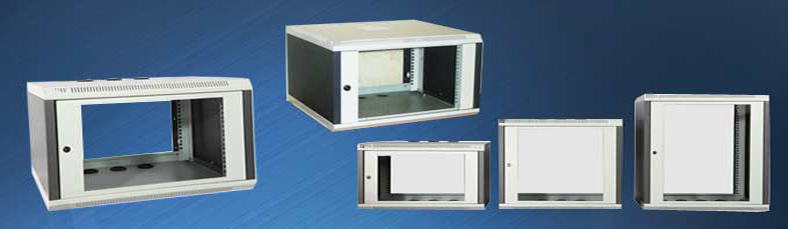

Wall Mounting Rack » 4U 550 X 400-600mm Depth
Specification
Model No:-    PWM4U 05-04
Capacity:-4U
Width:-550 mm
Depth:-400-600 mm
Height:-231 mm
Usable Height :-191 mm
Usable Depth:-370 mm
Wall Mounting Pitch
Mounting width:-518 mm
Mounting Height:-137mm
Features
  • Max Loading 60kg
  • Convenient and quick wall mounting
  • Welded Frame, Reliable structure
  • 19” standard installation
  • Cable entry on Top & Bottom cover
  • Front Toughened Glass Door
  • Turing angle of front door over 180°
  • Material SPCC Quality Cold Rolled Sheet
  • Powder coating frame RAL 7035 door RAL 7016
  • With extra perforation for ventilation to enhance the life of installed product
